Performance Coal Mine Industry Sludge Dewatering Equipment, Ceramic Vacuum Filter

FOB Reference Price:Get Latest Price
US $2,999-9,999 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
BETTER
Model Number:
BTC
Type:
dewatering machine
Name:
Coal Mine Industry Sludge Dewatering Equipment, Ceramic Vacuum Filter
Color:
Red/Yellow/Customized
Material:
Carbon Steel
Certification:
ISO9001
Application:
coal mine industry
Function:
concentrate dewatering
Size:
BTC
key words:
Coal Mine Industry Sludge Dewatering Equipment, Ceramic Vacuum Filter
usage:
solid-liquid separation
Supply Ability
Supply Ability:
12 Set/Sets per Month Coal Mine Industry Sludge Dewatering Equipment, Ceramic Vacuum F
Packaging & Delivery
Packaging Details
Standard seaworthy package for Performance Coal Mine Industry Sludge Dewatering Equipment, Ceramic Vacuum Filter
Port
Qingdao/Rizhao
Video Description



Product Overview

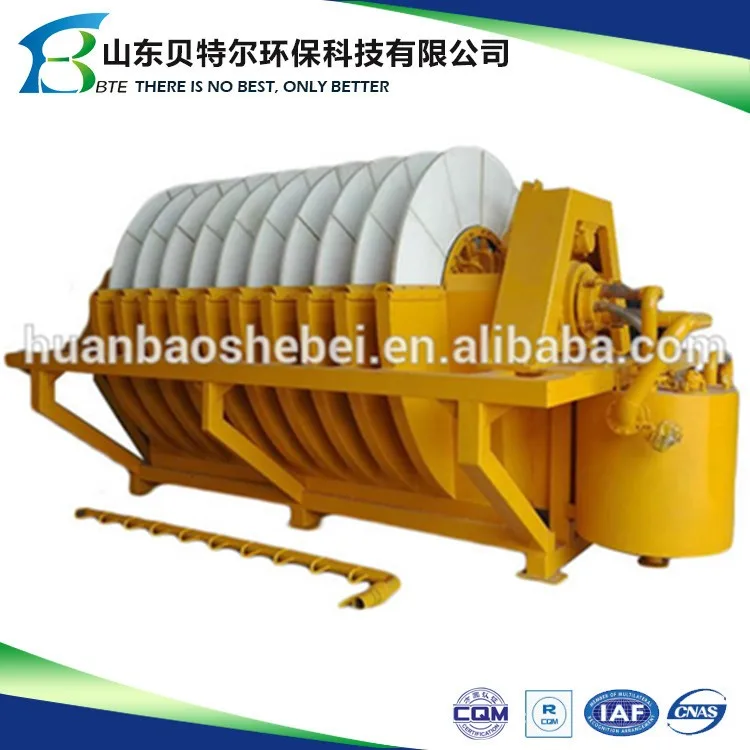

Ceramic filter is mainly used for fine coal slurry recovery, equipped with an engine base, under the engine base setting a fine coal slurry liquid trough, in this liquid trough, equipped with liquid level controller, both ends with negative pressure water tank, one side of this water tank is equipped  with negative pressure connected assembly fix, another side is vacuum pump pipeline connecting with a vacuum pump; on the engine base, there is a coal slurry recovery rotor, this rotor consists of main axle, multilevel ceramic filter disc, stripper plate, multisection effluent connecting pipeline piping support plate, negative pressure connecting assembly plate.



The rotor is located in liquid trough; the ceramic filter disc consists of many ceramic cavity micropore plates, those plates located in a same axes connect by the effluent connecting pipeline.



Main Structure

Ceramic filter is mainly consisting of roller system, mixing system, ore slurry feed  and discharge system, vacuum system, filtrate discharging system, scraping system, back washing system, united washing system (ultrasonic cleaning, automatic matching acid cleaning), full-automatic control system, trough body, rack etc.

Technology  Parameter

model  filters plate(circle)plate qual.(block)tank volume(m3)installed poweroperating powersize(m)(L*W*H)
BTC-1 1 12 0.4 7.6 6.6 2.2*1.95*1.63
BTC-4 2 24 0.79 9 7.32 2.45*2.25*1.83
BTC-6 3 36 0.94 10.5 7.98 2.7*2.25*1.83
BTC-8 4 48 1.28 11.5 8.14 3.04*2.25*1.83
BTC-12 6 72 1.79 13 7.96 3.6*2.25*1.83
BTC-24 8 96 3.96 23 16.28 4.45*2.85*2.25
BTC-30 10 120 4.6 25.15 17.95 5.1*2.85*2.24
BTC-45 10 120 5.9 40 30.4 5.7*3.2*2.5
BTC-60 14 168 8.1 43.81 30.37 6.82*3.2*2.5

Detailed Images
